CFX3102-0220F

ID-02

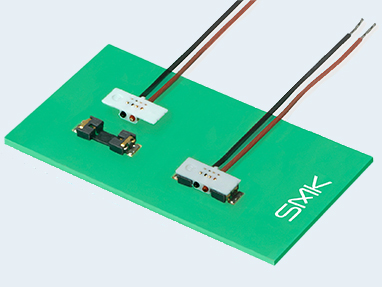

2P Board to Wire ID Method Connectors

RoHS Compliant
Product Inquiry

Specification

Features

1. A low profile 2P wire to board connector of 0.75mm pitch and the industry’s lowest mating height of 0.9mm.
2. Resistant to vibration and shocks when dropped and highly reliable due to a 2point contact structure.
3. Excellent cable retention performance and contact reliability due to double pressureconnected cables at back and front.
4. Excellent mating retention force in addition to ensured clicking feeling during insertion and withdrawal due to the mold locking structure.
Application
Smartphone, Tablet PC, PC, Wearables, Mobile devices, Home appliance
Plug/Receptacle/Terminal
Receptacle
Pitch
0.75mm
Number of Pins
2
Connection Method
Ins displacement
Applicable Electrical Wire
AWG32
Dimention
Length: 4.95mm Width: 1.8mm Height: 0.7mm
Mating Height
0.9ｍｍ
Mounting Style
SMT
Mounting Direction
Straight
Rated Voltage AC/DC
30V AC/DC, 1A
Contact Resistance
20mΩ Max.
Insulation Resistance
DC250V 100MΩ Min.
Withstanding Voltage
AC 250V (for one minute)
Operating Temperature Range
-30℃ to +80℃
Packaging
Embossed Taping (15000 pcs / reel)

Material and Plating

PCB Side Housing
Thermoplastic Resin
PCB Side Contact
Cu Alloy, Au Plating
Harness Side Housing
－
