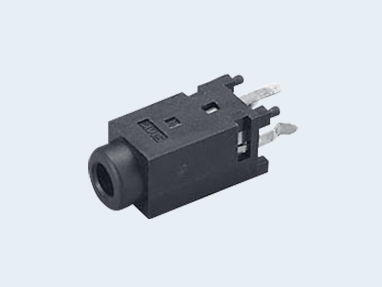

LGT1509-0200F
JK-35
3.5mm Dia. Jack
RoHS Compliant
Technical Information Data
Specification
| Features | 1. It is a small jack with a diameter of 3.5 mm. 2. A wide selection is available including SMD, DIP and Mid Mount types. 3. Country of Origin：China |
|---|---|
| Applicable Plug Diameter | 3.5mm |
| Number of Pins | 4 |
| Switch | Without |
| Dimention | 8 mm(W) × 8 mm(D) × 22 mm(H) |
| Mounting Style | DIP |
| Recommended Mounting | Manual Soldering |
| Mounting Direction | Vertical |
| Rated Voltage AC/DC | DC12V 1A |
| Contact Resistance | 30mΩ Max. |
| Insulation Resistance | DC 500V 100MΩ Min. |
| Withstanding Voltage | AC 500V (for one minute) |
| Operating Temperature Range | -40℃ to +85℃ |
| Packaging | Bulk |
Material and Plating
| Housing | Thermoplastic Resin |
|---|---|
| Sleeve Spring | Cu Alloy |
| Tip Spring | Cu Alloy |
