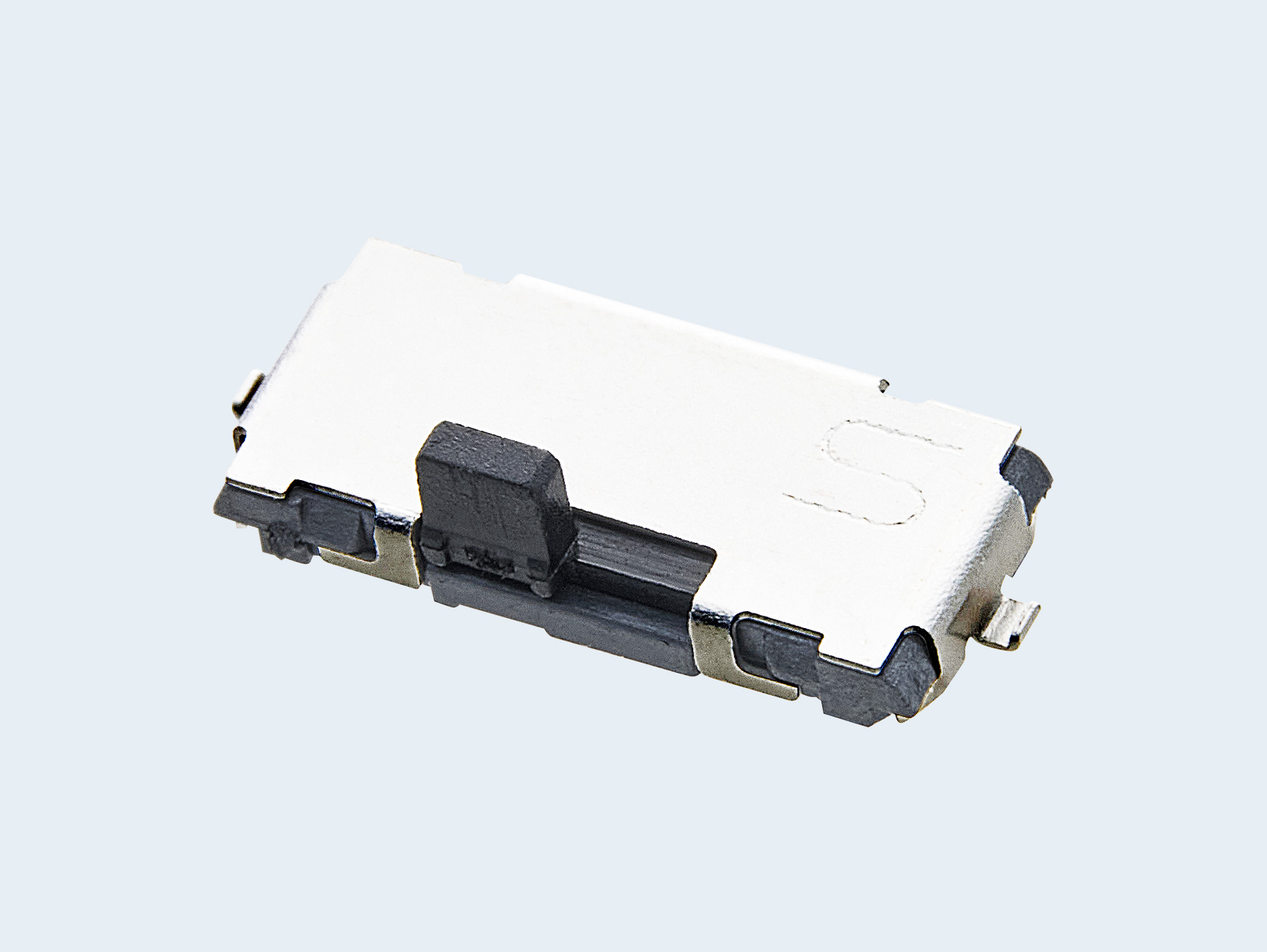

JSD1210-0111F
JSD
Slide Switches (Thin Type)
RoHS Compliant
Specification
| Features | 1. With a thickness of 0.9mm, it contributes to a thinner device design. 2. The PCB mounting area is 29.33 mm², supporting high-density assembly. 3. Two knob orientations are available: vertical and horizontal. 4. Country of origin: China |
|---|---|
| Application | <p>Digital still cameras, Car audio, Portable audio, PCs, PC peripherals, TVs, DVD players, Industrial equipment, Office equipment, Home appliances, Healthcare products</p> |
| Operating Force | 1.5N |
| Travel | 1.25mm |
| Circuit | SPDT |
| Dimention | 6.9mm(W) ×2.9mm(D) ×0.9mm(H) |
| Operating Direction | Horizontal type |
| Rated Voltage AC/DC | 6V DC, 10mA |
| Bulk/Reel | Reel |
